Option Cards

Option cards can be used for displaying a set of options that can be individually selected.

Schema

{
	"$schema": "http://json-schema.org/draft-07/schema#",
	"type": "object",
	"title": "Option Cards Schema",
	"description": "A group of options that can be individually selected"
	"properties": {
		"value": {
			"type": ["string"],
			"description": "ID of the selection option."
		},
		"label": {
			"type": "string",
			"description": "The control label."
		},
		"columns": {
			"type": "integer",
			"description": "The number of option cards to display in a row",
			"default": 2
		},
		"options": {
			"type": "array",
			"description": "A collection of options",
			"items": {
				"$ref": "#/definitions/optionCard"
			}
		}
	},
	"definitions": {
		"optionCard": {
			"type": "object",
			"description": "A single option to be rendered within the option cards.",
			"required": [
				"value"
			],
			"properties": {
				"id": {
					"type": "string",
					"description": "ID used to determine which option card is selected."
				},
				"label": {
					"type": "string",
					"description": "Label used for option card."
				},
				"value": {
					"description": "Value of the option card.",
					"type": ["object", "string"]
				},
				"icon": {
					"type": "string",
					"description": "Icon to display in the option card."
				},
			}
		}
	}
}

Option Cards example with icons

{% schema %}
{
	"option": {
		"type": "string"
	}
}
{% endschema %}

{
	"control": "option-cards",
	"label": "Options",
	"columns": 4,
	"value": {
		"$ref": "#/schema/option"
	},
	"options": [
		{
			"id": "up",
			"icon": "arrow-up",
			"value": "up"
		},
		{
			"id": "down",
			"icon": "arrow-down",
			"value": "down"
		},
		{
			"id": "right",
			"icon": "arrow-right",
			"value": "right"
		},
		{
			"id": "left",
			"icon": "arrow-left",
			"value": "left"
		}
	]
}

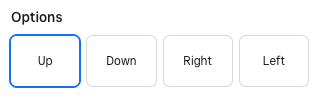

Option Cards example with labels

{% schema %}
{
	"option": {
		"type": "string"
	}
}
{% endschema %}

{
	"control": "option-cards",
	"label": "Options",
	"columns": 4,
	"value": {
		"$ref": "#/schema/option"
	},
	"options": [
		{
			"id": "up",
			"label": "Up",
			"value": "up"
		},
		{
			"id": "down",
			"label": "Down",
			"value": "down"
		},
		{
			"id": "right",
			"label": "Right",
			"value": "right"
		},
		{
			"id": "left",
			"label": "Left",
			"value": "left"
		}
	]
}
