Group List

group-list renders a list of related content and provides a way to define controls that are available for each group-list item upon click.

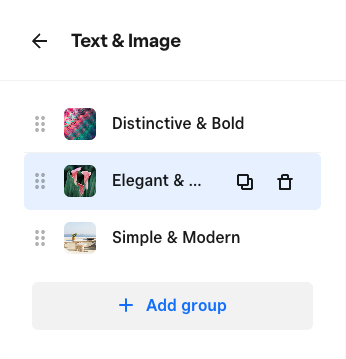

Item Actions

Item Controls

Schema

{
  "$schema": "https://json-schema.org/draft/2019-09/schema",
  "title": "Group List Control",
  "description": "Renders a list of related content and provides a way to define controls that are available for each group item.",
  "type": "object",
  "required": [
    "value"
  ],
  "properties": {
    "control": {
      "const": "group-list"
    },
    "value": {
      "description": "A collection of group items to be rendered in the group-list.",
      "type": "array",
      "items": {
        "type": "object",
        "description": "The properties of a group item.",
        "properties": {
            "label": {
              "type": "string",
              "description": "The label rendered in in the group-list item."
            },
            "thumbnail": {
              "type": "object",
              "description": "The thumnbail image rendered in the group-list item.",
              "properties": {
                "src": {
                  "type": "string",
                  "title": "Image source",
                  "description": "Source url"
                }
              }
            }
        }
      }
    },
    "itemActions": {
      "description": "The available actions on the individual group-list items.",
      "type": "array",
      "maxItems": 2,
      "items": {
        "type": "string"
      },
      "examples": [
        "delete",
        "duplicate"
      ]
    },
    "itemLabelKey": {
      "type": "string",
      "description": "Maps to the prop on a group-list item that will be used for the group-list items label. Useful when items don't have a label property, or the label will be dynamic.",
      "examples": [
        "title",
        "text",
        "title.content"
      ]
    },
    "itemThumbnailKey": {
      "type": "string",
      "description": "Maps to an image property on a group list item that will be used for the group-list items thumbnail. Useful when items don't have a thumb property, or the thumbnail will be dynamic.",
      "examples": [
        "image.src"
      ]
    },
    "minItems": {
      "type": "number",
      "description": "The minimum number of items allowed."
    },
    "maxItems": {
      "type": "number",
      "description": "The miximum number of items allowed."
    },
    "addItemLabel": {
      "type": "string",
      "description": "The label used for the the primary group-list add item action button. If this label isn't provided, the action button is hidden.",
      "examples": [
        "Add Group",
        "Add Slide",
        "Add Image",
      ]
    },
    "defaultItem": {
      "type": "object",
      "description": "Used to prefill the data of of newly created group-list items.",
      "examples": [
        {
          "title": "Distinctive & Bold",
          "text": "Get creative with our new styles.",
          "image": {
            "src": "the-image-src.jpg"
          }
        }
      ]
    },
    "sortable": {
      "type": "boolean",
      "description": "Allow the group-list items to be sortable."
    },
    "disableItemClick": {
      "type": "boolean",
      "description": "Disable click on group-list items."
    },
    "children": {
      "description": "List of controls that will be available for each group-list item. Click on an group-list item will reveal these controls.",
      "type": "array",
      "items": {
        "type": "object"
      }
    }
  }
}

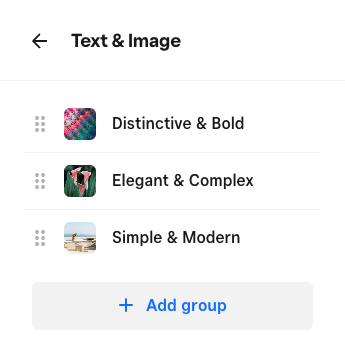

Example group-list control usage

{
    "name": "Text & Image",
    "controls": [
        {
            "control": "group-list",
            "addItemLabel": "Add group",
            "itemLabelKey": "title",
            "itemThumbnailKey": "image.src",
            "sortable": true,
            "maxItems": 10,
            "minItems": 1,
            "itemActions": ["duplicate", "delete"],
            "value": {
                "$ref": "#/schema/items"
            },
            "children": [
                {
                    "control": "input",
                    "label": "Title",
                    "value": {
                        "$ref": "#/schema/items/:idx/title"
                    }
                },
                {
                    "control": "textarea",
                    "label": "Text",
                    "value": {
                        "$ref": "#/schema/items/:idx/text"
                    }
                },
                {
                    "control": "image-chooser",
                    "label": "Image",
                    "value": {
                        "$ref": "#/schema/items/:idx/image"
                    }
                }
            ]
        },
        {
            "control": "input",
            "label": "Heading",
            "value": {
                "$ref": "#/schema/heading"
            }
        },
        {
            "control": "textarea",
            "label": "Subheading",
            "value": {
                "$ref": "#/schema/subheading"
            }
        }
    ]
}

Example section with items that will be used with the group-list

{
  "props": {
    "items": [
      {
        "text": "One of our most popular items. Perfect for everyday use. Exceptional quality and choice.",
        "image": {
          "src": "https://images.unsplash.com/photo-1615615307921-1f456bc82a08?crop=entropy&cs=tinysrgb&fit=max&fm=jpg&ixid=M3w0NjE4NHwwfDF8YWxsfDI4fHx8fHx8MXx8MTcxNDU3ODA0M3w&ixlib=rb-4.0.3&q=80&w=1080",
          "name": "pink and teal abstract painting",
          "width": 1080,
          "height": 1619,
          "attribution": {
            "id": "FKexeBLmRi0",
            "url": "https://unsplash.com/@solenfeyissa?utm_source=Weebly_Editor_Prime&utm_medium=referral",
            "name": "Solen Feyissa"
          }
        },
        "title": "Distinctive & Bold"
      },
      {
        "text": "Some cool photography",
        "image": {
          "src": "https://images.unsplash.com/photo-1469259943454-aa100abba749?crop=entropy&cs=tinysrgb&fit=max&fm=jpg&ixid=M3w0NjE4NHwwfDF8YWxsfDc5fHx8fHx8MXx8MTcxNDU3ODE4N3w&ixlib=rb-4.0.3&q=80&w=1080",
          "name": "selective focus photography of pink petaled flower",
          "width": 1080,
          "height": 1620,
        },
        "title": "Elegant & Complex"
      },
      {
        "text": "Some cool photography",
        "image": {
          "src": "https://images.unsplash.com/photo-1512425296298-43a8c196eeed?crop=entropy&cs=tinysrgb&fit=max&fm=jpg&ixid=M3w0NjE4NHwwfDF8YWxsfDgxfHx8fHx8MXx8MTcxNDU3ODE4N3w&ixlib=rb-4.0.3&q=80&w=1080",
          "name": "brown pot with green plant on wooden bench",
          "width": 1080,
          "height": 720,
        },
        "title": "Simple & Modern"
      }
    ],
    "heading": "HELLO!",
    "subheading": "This is a subtitle",
    "showSomething": true
  },
  "template": "home/text-and-image"
}
